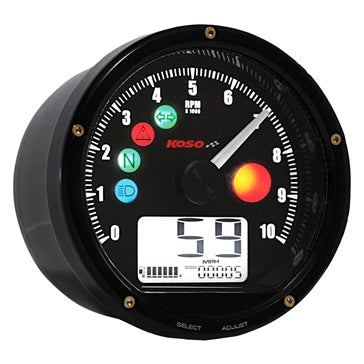

Koso TNT Meter Universal

METER TNT MULTI-FUNCTION BK KOSO

Our TNT-01 multifunction speedometer/tachometer is the perfect meter for all the Café racers and special projects. The TNT meter use a stepper motor for a fast and smooth response. The instrument features many functions such as, speed, odometer, trip meter, RPM, fuel gauge, clock, voltage, shift light, indicator light and more… This meter is available in black or white face and includes the installation brackets and speed sensor.

(R = Range; U = Unit)

Specifications:

• Speedometer: R: 0 ~ 225 MPH (0 ~ 360 km/h); U: MPH or km/h
• Odometer: R: 0 ~ 99,999 miles (km); U: 1 mile (km)
• Tripmeter A/B: R: 0 ~ 999.9 miles (km); U: 0.1 mile (km)
• Tire circumference: R: 300 ~ 2,500 mm; U: 1 mm. Sensitive point: 1 ~ 20.
• Tachometer: R: 0~10,000 RPM
• Shift-light: R: 8,000 ~ 10,000 RPM; U: 100 RPM
• Warning (shift light): R: Light on (F-OFF); Flash (F-ON)
• RPM input signal number: R: 0.5, 1 ~ 24
• RPM input pulse: R: HI-ACT (positive wave pulse); LO-ACT (negative wave pulse)
• Fuel meter: R: 6 levels; U: 1 level = 16.6 %
• Effective temperature range: 14 ~ 140 °F (-10 ~ 60 °C)
• Fuel resistance: R: 100 O / 250 O / 510 O / 1,200 O / SW
• Clock R: 24 H format
• Voltmeter: R: DC 8 ~ 18 V; flashing warning light (< DC 11.5 V or > DC 15.5 V).
• Backlight brightness: R: 1/5 (darkest) ~ 5/5 (brightest)
• Indicator lights: neutral/high beam/turn signals/check engine/oil level/temperature/speeding/RPM shift light
• Effective voltage: DC 12 V
• Sensor included: active speed sensor: BF019005
