SKU: 345070
KimpexHD
Kimpex HD Stator; Flywheel; Puller; AC/DC Ignition Conversion Kit 4.1 inch
Kimpex HD Stator; Flywheel; Puller; AC/DC Ignition Conversion Kit 4.1 inch
Regular price
$778.49 CAD
Regular price
$864.99 CAD
Sale price
$778.49 CAD
Unit price
per
Note: Certain products may be subject to additional fees for bulk orders, non-conveyable items, and environmental fees at the checkout.
Couldn't load pickup availability

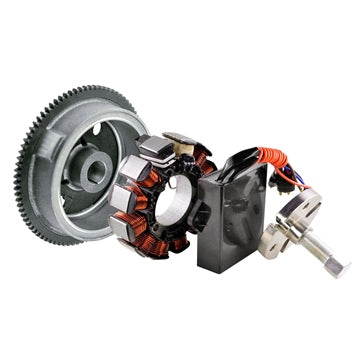

This kit includes: a Generator Stator, a Flywheel, a Puller, an AC to DC Ignition Conversion Kit.
Flywheel
Dimensions:
Exterior Diameter: 141 mm Interior Diameter: 117 mm Interior Diameter Center Housing: 25 mm Exterior Diameter Center Housing: 23 mm
Flywheel Pullerr
Main Base Diameter: 105 mm (4.1'') Thickness: 12mm (0.5'')
SF-900-006548 / SF-900-006548 (345070 / 345072) - Polaris Sportsman Big Boss Scrambler
Generator Stator
Dimensions :
Interior diameter : 47 mm / 48mm Exterior diameter : 114 mm / 115mm Thickness : 20 mm Length of wires stator to grommet : 155 mm / 135mm Length of wires grommet to plug : 900 mm / 1200mm Length of pickup coil's wire to grommet : 60 mm / 120mm
Other specifications :
Number of wires : 7
Number of plugs : 9 / 6
Number of pins : 12 / 8
Wire to wire resistance :
Alternator : Yellow/Red to Yellow = 0.4 ohms +/-20%
Pickup : White/Red to Red = 115 ohms +/-20%
Source : Black to Red = 18 ohms +/-20%
SF-900-006547 (345069) - Polaris Sportsman Scrambler Magnum
Stator
Dimensions :
Interior diameter : 51 mm Exterior diameter : 114 mm Thickness : 20 mm
Other specifications :
Number of wires : 9
Number of plugs : 7
Number of pins : 10
Wire to wire resistance:
Alternator: Yellow to Yellow/Red = 0.6 ohms +/-20%
Pickup: White to White/Red = 100 ohms =+/-20%
Source Green to Red/Black = 450 ohms =+/-20%
Source 2: Green to Black = 3.8 ohms =+/-20%
Flywheel
Dimensions:
Flywheel Pullerr
SF-900-006548 / SF-900-006548 (345070 / 345072) - Polaris Sportsman Big Boss Scrambler
Generator Stator
Dimensions :
Other specifications :
Number of wires : 7
Number of plugs : 9 / 6
Number of pins : 12 / 8
Wire to wire resistance :
Alternator : Yellow/Red to Yellow = 0.4 ohms +/-20%
Pickup : White/Red to Red = 115 ohms +/-20%
Source : Black to Red = 18 ohms +/-20%
SF-900-006547 (345069) - Polaris Sportsman Scrambler Magnum
Stator
Dimensions :
Other specifications :
Number of wires : 9
Number of plugs : 7
Number of pins : 10
Wire to wire resistance:
Alternator: Yellow to Yellow/Red = 0.6 ohms +/-20%
Pickup: White to White/Red = 100 ohms =+/-20%
Source Green to Red/Black = 450 ohms =+/-20%
Source 2: Green to Black = 3.8 ohms =+/-20%
