Kimpex HD Flywheel; Flywheel Puller; Gasket & Generator Stator Kit

FLYWHEEL/SEAL/PULLER/STATOR KIT KAWA

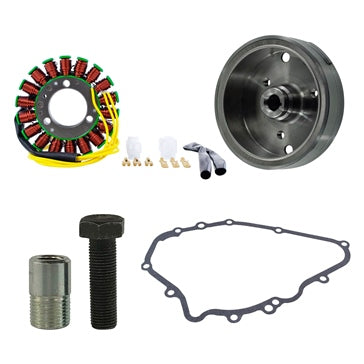

This kit includes: Flywheel, Flywheel Puller, Gasket and Generator Stator
All products shipped are tested

Heavy duty Magneto Flywheel rotor for Motorcycles.
Kimpex trade heavy-duty flywheel rotor for Kawasaki Motorcycles is a well-priced solution to problems with the OEM flywheel, and an excellent alternative to all the mechanical troubles you can encounter with a repair.

• Built to OEM size: Fits precisely in your ride: install it and forget it.
• Improved epoxy: Uses high temperature epoxy that is stronger than OEM, eliminating the possibility of magnet detachment.
• High grade steel capping: Prevents harsh additives in motor oil from degrading the epoxy attaching
the magnets. Though extremely unlikely, if a magnet did ever come loose, it would remain in the sleeve preventing contact with the stator.
• Precise balancing: Eliminates crankshaft vibrations for longer engine longevity.
• Don't waste time with temporary solutions, and start fixing your ride like a pro!

WARNING FLYWHEEL!
OEM part no: 021003-1123 (GP9306) - Please check with your original rotor. The RMS120-104074 has 4 'protrusions' on the outside, 3 short and 1 long, (these trigger the pickup coil)

Our part is ONLY compatible with flywheels that have the following codes: FF95 & 1964K01


Flywheel Puller MP#18

• 18mm x 1.5 hand male
• Includes crankshaft thread protector cap
• Length: 30 mm
• Exterior Diameter: 18 mm
• Interior Diameter: 10.95 mm

Generator Stator

• Direct replacement to your original unit
• You must re-install your original grommet.
• Once your connector and grommet is re-installed, our part becomes a Plug-and-play unit, direct fit, and very easy to install.
• Highest grade lamination materials
• Highest grade copper windings, resistant to 200 degrees Celsius.
• Connector included

Battery condition is important. No stator can make up for a bad or weak battery. If in doubt charge your battery and have it load tested, or simply replace it. Always Start with a Fully Charged Battery!
