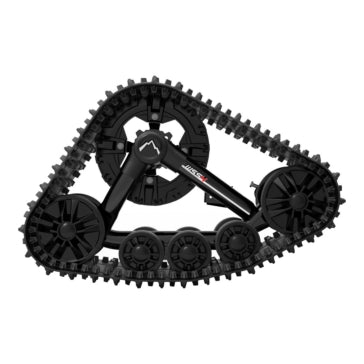

COMMANDER WSS4 Track Kit 4 Seasons

COMMANDER WSS4 (4X156)


$$ To install tracks on your UTV, you need:

Step 1

• Choose your WSS4 Track kit

Step 2 (Select the proper track adapter depending on your UTV model)

• You may refer to the chart shown in the photos.
• You may browse the website using the Search “by vehicle” search tool.

$$
You’re driving your UTV and wish you could cross over this white snowbank alongside the path in the winter? Stop limiting yourself; drive a WSS4 “Commander”!

$$No more boundaries, no more fear; the WSS4 will take you wherever you want with your friends or your equipment with an adrenalin bonus!
The well-thought out design and robust construction, combined with tracks designed for optimal traction, make the WSS4 “THE” UTV Kit for all seasons.$$

• 15” (381 mm) sprocket built for all season use
• Aggressive track profile
$$
• HD tensioner: Quick & easy to use
• Pronounced attack angle helps to clear obstacles
• Wheels contact patch coated with rubber: Prevents ice from sticking
$$
• System without slider shoe for all season performance
$$
• Four wheels tandem for more comfort and smoother driving feel with your UTV
$$
• Wheels with two cap-protected ball bearings: low and easy maintenance$$
• Triangulated frame composed of robust 2.5” (64 mm) steel tubing$$

Specifications:

• Width: 318 mm / 12.5” front, 356 mm / 14” rear
• Length: 2460 mm / 97” front, 2970 mm / 117” rear
• Weight: (without mount kit) 91 lb. / 41 kg front, 112 lb. / 51 kg rear
• Frame material: Steel
• Lug height: 25 mm / 1” front, 33 mm / 1.3” rear
$$
• Drive type: Internal
• Flotation surface: 1.57 m² / 2430 in² = 0.65 m² / 1000 in² front & 0.92 m² / 1430 in² rear
• Ground clearance: Increase of 145 mm / 5.5”
$$
• Speed loss: 35%
$$
• Initial installation time: 1,5 hrs.
• Subsequent installation time: 30 minutes
$$
• Applications: UTV only

Use:

• Snow: Deep, Moderate, Path and Springtime
• Off Snow: Marshland, Mud, Sand, Dirt road and Gravel

NOTES for the DPS module :

The DPS module gives you the real speed of your vehicule while driving. Here are the codes to be used depending on the vehicule you own:

• Commander = 715 002 001
• Maverick = 715 002 001
