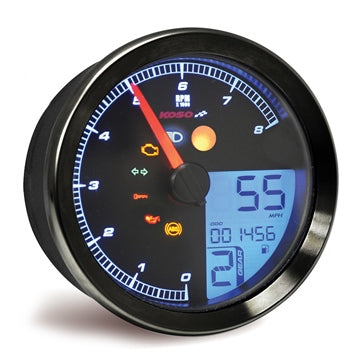

Koso TNT-B Meter for Yamaha Bolt Motorcycle

GAUGE TNT-B METER BK BEZEL YAM KOSO

Yamaha Bolt® enthusiasts riders can now customize their motorcycle with our high-quality plug & play TNT-B meter. It is equipped with a 7 color changeable LCD display and also uses a strong stepper motor that provides a precise and fast RPM reading so that you can get in-time information. Some of the great functions this meter has to offer are : speed, RPM, indicator lights, fuel meter, and gear position indicator.

Functions:

• Speedometer: 0~360 km/h (0~225 mph)
• Overspeed warning setting: 30 ~ 360 km (19 ~ 225 miles)
• Max speed record: 0 ~ 360 km (miles)
• Odometer: 0 ~ 999,999 km (miles)
• Trip meter A/B: 0 ~ 9?,999.9 km (miles)
• Motor oil maintenance: Close / 500 ~ 16,000 km (300 ~ 10,000 miles)
• Fuel reserve tripmeter: 0 ~ 9,999.9 km (miles)
• Tire percentage: 50 ~ 200%
• Gear position: N, 1, 2, 3, 4, 5
• Max gear level record: N, 1, 2, 3, 4, 5 and Record gear level when at maximum RPM
• Tachometer: 0 ~ 8?000 RPM
• Shift light warning: 1,000 ~ 8,000 RPM
• Digital tachometer: 0 ~ 8,000 RPM
• Thermometer: °C or °F (switchable)
• Water temp meter: -30 ~ 225°C (-22 ~ 437°F)
• Overheat warning setting: 60 ~ 225°C (140 ~ 437°F)
• Max. temp. record: 1°C (°F)
• Round indicator:-30 ~ 225°C (-22 ~ 437°F)
• Warning cause: Speeding, Warning light, RPM shift light, Overheat warning light, Low volt warning, Fuel warning, Oil maintenance and Highest gear.
• Warning method: Lit (L), Slow flash (S), Flash (F)
• Low Fuel Indicator: (ON) / (OFF) / Flash
• Clock: 12 / 24 H format
• Under voltage warning: 8.0 ~ 18.0 V
• Backlight brightness: 1 – 5 (darkest) ~ 5 – 5 (brightest)
• Backlight colors: Purple, Red, Yellow, Green, Blue, Light blue and White
• ABS indicator setting: Close (OFF) / Open (ON)

Specifications:

• Effective voltage: DC 12V
• Meter standard: JIS D 0203
• Meter size: 94.7 x 94.7 x 69.2 mm
• Meter weight: ±217g
