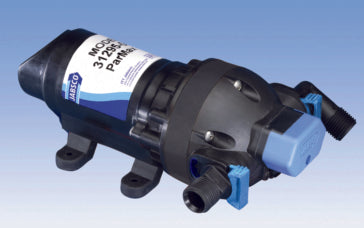

JABSCO RULE Par-Max 1.9 Water Pressure Pump

PAR-MAX 1.9 WATER SYSTEM PUMP

Jabsco PAR-Max Series Water Pressure Pumps are simple, quiet, easy to maintain, and provide hot or cold water at the turn of a tap. They’re also versatile enough to produce a full flow or a trickle, according to need.

The PAR-Max 1.9 is suitable for smaller boats with one or two outlets, producing 1.9 GPM (7.2 LPM). It’s supplied with a built-in pulsation-dampening bypass to reduce cycling and noise; this provides the option of omitting an accumulator tank on simple installations.

Features and Benefits:

• CO-Molded diaphragm technology for long life and durability.
• Integrated, sealed pressure switch for on-demand operation
• Can run dry without damage
• Vibration dampening mounting feet
• Quick connect ports for easy of installation, servicing and maintenance
• Equipped with integrated bypass module to reduce cycling and provide smoother flow
• Self-priming up to 6-10' (2-3m)
• Complies with ISO 8846 MARINE (Ignition Protection)
• Screw-less diaphragm design eliminates possible leak path
• Diaphragm design allows dry running
• Can eliminate the requirement for an accumulator tank
• Include quick-connect fittings for ease of pump installation
• Three-year warranty

Specification:

• FLOW: 1.9 GPM (7.2 LPM)
• SHUT-OFF PRESSURE : 25 psi (1.7 bar)
• FITTING : Two 1/2" (13mm) straight pipe thread ports, two 1/2" (13mm) straight hose barbs
• SIZE: 9" long x 4.24" wide x 4.75" high (22.9cm x 10.6cm x 12.1cm)
• WEIGHT: (1.4kg)
